本文最后更新于：2026年1月5日 晚上

踩坑

在使用 IBKR API 进行以及初步学习量化交易的过程中，我遇到了一些问题，特此记录下来以备后续参考。

环境配置

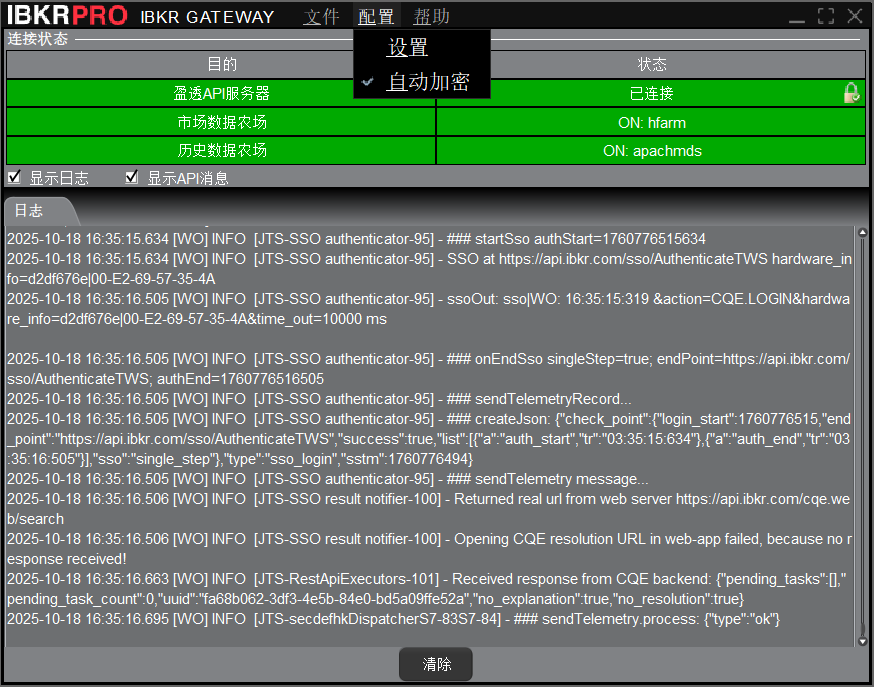

安装IBKR Gateway

安装官网上ibkr gateway应用（此应用作为沟通程序与IBKR服务器的桥梁），并配置好API访问权限。不使用TWS的原因是TWS功能过于复杂，且资源占用较高，ui有一种上世纪的美感。

地址：https://www.interactivebrokers.com/cn/trading/ibgateway-latest.php

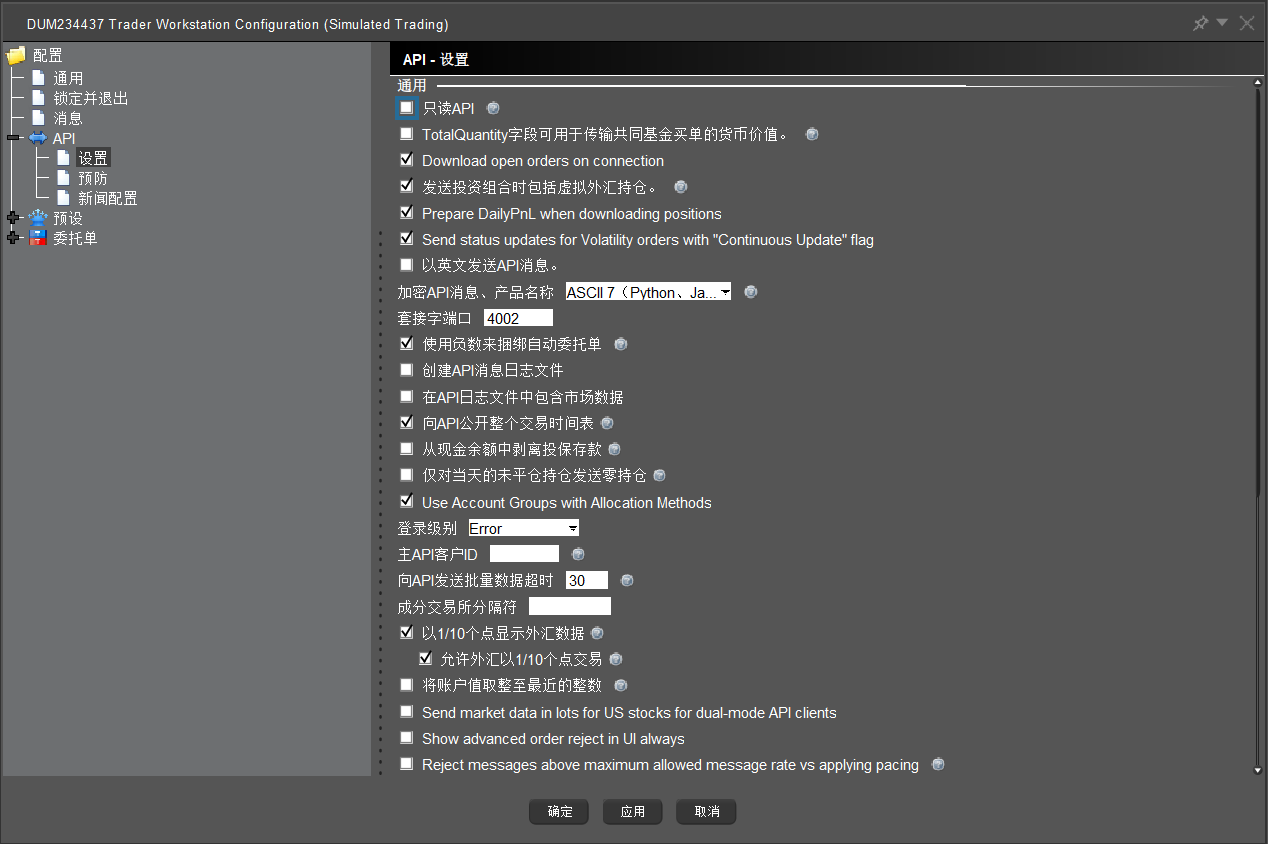

一些默认的配置

推荐开一个ibkr的模拟账户进行测试，同时开一个子用户购买数据订阅服务，以免影响主账户的正常使用。

安装python库环境

安装 ib_async

ib_async 是一个第三方对接IBKR API的python库，功能完善且易用。

安装ib_async库，注意不是ib_insync，ib_insync已经被停止维护弃用，文档地址已经指引到ib_async中。

官方文档：
考虑到这一点，用户应该知道，原始ib_insync包是使用旧版TWS API构建的，不再更新。希望使用受支持的 Trader Workstation 版本实现ib_insync结构的用户应迁移到 ib_async 包 ，该包是由其原始开发人员之一对该包进行现代化实现。

相关文档：

  1. https://ib-api-reloaded.github.io/ib_async/notebooks.html
  2. https://www.interactivebrokers.com/campus/ibkr-api-page/twsapi-doc/#non-tws-api-support
1
pip install ib_async

安装官方api

部分应用可能需要安装官方api，这里提供官方api安装方法
https://www.interactivebrokers.com/campus/ibkr-api-page/twsapi-doc/#windows-install

盈透证券官方 API 仅通过其 Github 站点提供，而不是 Python 包索引 （PyPI），因为它是在不同的许可证下分发的。但是，您可以从提供的源代码构建一个轮子，然后安装轮子。这些是步骤：

1） 从 http://interactivebrokers.github.io/ 下载“API 最新” http://interactivebrokers.github.io/

2） 解压缩或安装（如果是.msi文件）下载。

3） 转到 tws-api/source/pythonclient/

4） 安装：

1
2
$  cd ~/TWS API/source/pythonclient
$  python3 setup.py install

在 TWS API\samples\Python 下有一些demo测试api是否已经安装

连接IBKR Gateway

使用ib_async连接IBKR Gateway，代码如下：

1
2
3
4
from ib_async import *
ib = IB()
ib.connect('127.0.0.1', 4002, clientId=991)
logging.info("已连接到IBKR服务器")

注意：4002端口是IBKR Gateway的默认API端口，TWS的默认端口是7497。
端口可以在gateway的配置界面中查看和修改，clientId是用户自定义的一个标识符，可以随意设置，但同一时间只能有一个客户端使用同一个clientId连接到IBKR服务器，否则会导致连接失败。

常用api

等我研究研究

vnpy

vnpy是一个开源的量化交易框架，支持多种交易所和数据源，包括IBKR。它提供了丰富的功能和工具，适合用于构建和运行量化交易策略。

踩到的坑

  1. vnpy-ib的安装，需要去clone vnpy-ib的的仓库，手动安装更新依赖，之后再安装protobuf

  2. 使用vnpy-alpha的时候，需要安装alphalens依赖，使用pip install alphalens-reloaded安装最新版本，老版本的alphalens不兼容最新的python版本。

量化交易入门

量化交易的核心在于设计和实现一个有效的交易策略。

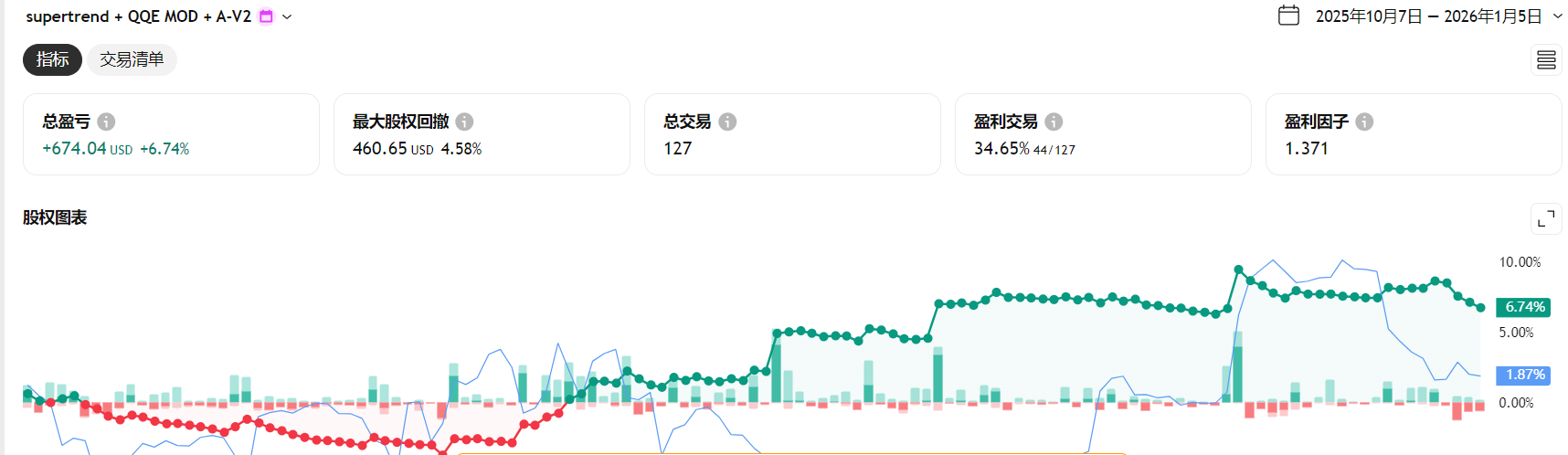

等我读一些文章再来写吧，我觉得对接api属于苦力活，难点还是在如何设计一个完善的交易策略上。这里简单的用tradeviewer的策略回测功能来验证一下交易策略的有效性。跑个demo策略。

某些神奇策略

记录一下从网上cp的或者不知道从哪来的神奇策略

superTrend + QQE MOD + A-V2

某个趋势跟踪策略，使用superTrend指标，QQE MOD指标和A-V2指标的组合来生成交易信号。superTrend指标用于识别市场趋势，QQE MOD指标用于确认趋势的强度，A-V2指标用于捕捉价格的动量变化。用后面两个指标来过滤superTrend的信号，以减少假信号的出现。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
// This Pine Script® code is subject to the terms of the Mozilla Public License 2.0 at https://mozilla.org/MPL/2.0/
// © liahnu2003

//@version=5
strategy('supertrend + QQE MOD + A-V2', overlay=true)

// SuperTrend
group_supertrend = "SuperTrend Settings"
Periods = input(title='ATR Period', defval=9,group = group_supertrend)
src = input(hl2, title='Source',group = group_supertrend)
Multiplier = input.float(title='ATR Multiplier', step=0.1, defval=3.9,group = group_supertrend)
changeATR = input(title='Change ATR Calculation Method ?', defval=true,group = group_supertrend)
showsignals = input(title='Show Buy/Sell Signals ?', defval=true,group = group_supertrend)
highlighting = input(title='Highlighter On/Off ?', defval=true,group = group_supertrend)

// === PRIMARY QQE SETTINGS ===
group_primary = "Primary QQE Settings"
rsiLengthPrimary = input.int(6, title="RSI Length", group=group_primary)
rsiSmoothingPrimary = input.int(5, title="RSI Smoothing", group=group_primary)
qqeFactorPrimary = input.float(3.0, title="QQE Factor", group=group_primary)
thresholdPrimary = input.float(3.0, title="Threshold", group=group_primary)
sourcePrimary = input.source(close, title="RSI Source", group=group_primary)

// === SECONDARY QQE SETTINGS ===
group_secondary = "Secondary QQE Settings"
rsiLengthSecondary = input.int(6, title="RSI Length", group=group_secondary)
rsiSmoothingSecondary = input.int(5, title="RSI Smoothing", group=group_secondary)
qqeFactorSecondary = input.float(1.61, title="QQE Factor", group=group_secondary)
thresholdSecondary = input.float(3.0, title="Threshold", group=group_secondary)
sourceSecondary = input.source(close, title="RSI Source", group=group_secondary)

// === BOLLINGER BANDS SETTINGS ===
group_bollinger = "Bollinger Bands Settings"
bollingerLength = input.int(50, minval=1, title="Length", group=group_bollinger, tooltip="The length of the Bollinger Bands calculation.")
bollingerMultiplier = input.float(0.35, step=0.1, minval=0.001, maxval=5, title="Multiplier", group=group_bollinger, tooltip="The multiplier used to calculate Bollinger Band width.")

// A V2

ma_type = input.string('EMA', 'MA Type', ['ALMA','HMA','SMA','SWMA','VWMA','WMA','ZLEMA','EMA'], group = 'Setup')
ma_period = input.int(9, 'MA Period (Length)', 1, group='Setup')

alma_offset = input.float(0.85, 'ALMA Shift', 0, 1, 0.05, group = 'Setup (ALMA)')
alma_sigma = input.int(6, 'ALMA Deviation', 1, step = 1, group = 'Setup (ALMA)')

// 策略参数
group_strategy = "Strategy Settings"
use_stop_loss = input.bool(true, "使用止损", group=group_strategy)
stop_loss_percent = input.float(2.0, "止损百分比", minval=0.1, maxval=20, step=0.1, group=group_strategy)

// SuperTrend
atr2 = ta.sma(ta.tr, Periods)
atr = changeATR ? ta.atr(Periods) : atr2
up = src - Multiplier * atr
up1 = nz(up[1], up)
up := close[1] > up1 ? math.max(up, up1) : up
dn = src + Multiplier * atr
dn1 = nz(dn[1], dn)
dn := close[1] < dn1 ? math.min(dn, dn1) : dn
trend = 1
trend := nz(trend[1], trend)
trend := trend == -1 and close > dn1 ? 1 : trend == 1 and close < up1 ? -1 : trend
upPlot = plot(trend == 1 ? up : na, title='Up Trend', style=plot.style_linebr, linewidth=2, color=color.new(color.green, 0))
buySignal = trend == 1 and trend[1] == -1
plotshape(buySignal ? up : na, title='UpTrend Begins', location=location.absolute, style=shape.circle, size=size.tiny, color=color.new(color.green, 0))
plotshape(buySignal and showsignals ? up : na, title='Buy', text='Buy', location=location.absolute, style=shape.labelup, size=size.tiny, color=color.new(color.green, 0), textcolor=color.new(color.white, 0))
dnPlot = plot(trend == 1 ? na : dn, title='Down Trend', style=plot.style_linebr, linewidth=2, color=color.new(color.red, 0))
sellSignal = trend == -1 and trend[1] == 1
plotshape(sellSignal ? dn : na, title='DownTrend Begins', location=location.absolute, style=shape.circle, size=size.tiny, color=color.new(color.red, 0))
plotshape(sellSignal and showsignals ? dn : na, title='Sell', text='Sell', location=location.absolute, style=shape.labeldown, size=size.tiny, color=color.new(color.red, 0), textcolor=color.new(color.white, 0))
mPlot = plot(ohlc4, title='', style=plot.style_circles, linewidth=0)
longFillColor = highlighting ? trend == 1 ? color.green : color.white : color.white
shortFillColor = highlighting ? trend == -1 ? color.red : color.white : color.white
fill(mPlot, upPlot, title='UpTrend Highligter', color=longFillColor, transp=90)
fill(mPlot, dnPlot, title='DownTrend Highligter', color=shortFillColor, transp=90)
alertcondition(buySignal, title='SuperTrend Buy', message='SuperTrend Buy!')
alertcondition(sellSignal, title='SuperTrend Sell', message='SuperTrend Sell!')
changeCond = trend != trend[1]
alertcondition(changeCond, title='SuperTrend Direction Change', message='SuperTrend has changed direction!')


// QQE MOD
calculateQQE(rsiLength, smoothingFactor, qqeFactor, source) =>
    wildersLength = rsiLength * 2 - 1
    rsi = ta.rsi(source, rsiLength)
    smoothedRsi = ta.ema(rsi, smoothingFactor)
    atrRsi = math.abs(smoothedRsi[1] - smoothedRsi)
    smoothedAtrRsi = ta.ema(atrRsi, wildersLength)
    dynamicAtrRsi = smoothedAtrRsi * qqeFactor

    // Initialize variables
    longBand = 0.0
    shortBand = 0.0
    trendDirection = 0

    // Calculate longBand, shortBand, and trendDirection
    atrDelta = dynamicAtrRsi
    newShortBand = smoothedRsi + atrDelta
    newLongBand = smoothedRsi - atrDelta
    longBand := smoothedRsi[1] > longBand[1] and smoothedRsi > longBand[1] ? math.max(longBand[1], newLongBand) : newLongBand
    shortBand := smoothedRsi[1] < shortBand[1] and smoothedRsi < shortBand[1] ? math.min(shortBand[1], newShortBand) : newShortBand
    longBandCross = ta.cross(longBand[1], smoothedRsi)

    if ta.cross(smoothedRsi, shortBand[1])
        trendDirection := 1
    else if longBandCross
        trendDirection := -1
    else
        trendDirection := trendDirection[1]

    // Determine the trend line
    qqeTrendLine = trendDirection == 1 ? longBand : shortBand
    [qqeTrendLine, smoothedRsi]

// === MAIN CALCULATIONS ===
// Calculate Primary QQE
[primaryQQETrendLine, primaryRSI] = calculateQQE(rsiLengthPrimary, rsiSmoothingPrimary, qqeFactorPrimary, sourcePrimary)

// Calculate Secondary QQE
[secondaryQQETrendLine, secondaryRSI] = calculateQQE(rsiLengthSecondary, rsiSmoothingSecondary, qqeFactorSecondary, sourceSecondary)

// Calculate Bollinger Bands for the Primary QQE Trend Line
bollingerBasis = ta.sma(primaryQQETrendLine - 50, bollingerLength)
bollingerDeviation = bollingerMultiplier * ta.stdev(primaryQQETrendLine - 50, bollingerLength)
bollingerUpper = bollingerBasis + bollingerDeviation
bollingerLower = bollingerBasis - bollingerDeviation

// Color Conditions for Primary RSI
rsiColorPrimary = primaryRSI - 50 > bollingerUpper ? color.blue : primaryRSI - 50 < bollingerLower ? color.red : color.new(#707070, 20)

// Color Conditions for Secondary RSI
rsiColorSecondary = secondaryRSI - 50 > thresholdSecondary ? color.new(#707070, 20) : secondaryRSI - 50 < -thresholdSecondary ? color.new(#707070, 20) : na

// === PLOTTING ===
// // Plot Primary and Secondary QQE Lines
// plot(secondaryQQETrendLine - 50, title="Secondary QQE Trend Line", color=color.white, linewidth=2)
// plot(secondaryRSI - 50, color=rsiColorSecondary, title="Secondary RSI Histogram", style=plot.style_columns)

// // Plot Signal Highlights
// plot(secondaryRSI - 50 > thresholdSecondary and primaryRSI - 50 > bollingerUpper ? secondaryRSI - 50 : na, title="QQE Up Signal", style=plot.style_columns, color=#00c3ff)
// plot(secondaryRSI - 50 < -thresholdSecondary and primaryRSI - 50 < bollingerLower ? secondaryRSI - 50 : na, title="QQE Down Signal", style=plot.style_columns, color=#ff0062)

// // Plot Zero Line
// hline(0, title="Zero Line", color=color.white, linestyle=hline.style_dotted)

show_line_1(x) =>
    input.bool(true, 'Show Close line', group = 'On/Off') ? x : na
show_line_2(x) =>
    input.bool(false, 'Show High/Low lines', group = 'On/Off') ? x : na
show_fill(x) =>
    input.bool(true, 'Show fill', group = 'On/Off') ? x : na
//╠════════════════════════════════════════════════════════════════════════════════════════════════════════════════════╣
//║ Calculations :
f(x) =>
    switch ma_type
        'ALMA' => ta.alma(x, ma_period, alma_offset, alma_sigma)
        'HMA' => ta.hma(x, ma_period)
        'SMA' => ta.sma(x, ma_period)
        'SWMA' => ta.swma(x)
        'VWMA' => ta.vwma(x, ma_period)
        'WMA' => ta.vwma(x, ma_period)
        'ZLEMA' => ta.ema(x + x - x[math.floor((ma_period - 1) / 2)], ma_period)
        => ta.ema(x, ma_period)

ma_heikinashi_open = f(request.security(ticker.heikinashi(syminfo.tickerid), timeframe.period, open))
ma_heikinashi_close = f(request.security(ticker.heikinashi(syminfo.tickerid), timeframe.period, close))
ma_heikinashi_high = f(request.security(ticker.heikinashi(syminfo.tickerid), timeframe.period, high))
ma_heikinashi_low = f(request.security(ticker.heikinashi(syminfo.tickerid), timeframe.period, low))

ma_trend = 100 * (ma_heikinashi_close - ma_heikinashi_open) / (ma_heikinashi_high - ma_heikinashi_low)
//╠════════════════════════════════════════════════════════════════════════════════════════════════════════════════════╣
//║ Colors :
color_positive = input.color(color.new(#26A69A, 0), 'Positive color (Bullish)', group = 'Colors')
color_negative = input.color(color.new(#EF5350, 0), 'Negative color (Bearish)', group = 'Colors')
color_neutral = input.color(color.new(#808080, 0), 'Neutral color', group = 'Colors')

color_trend = ma_trend > 0 ? color_positive : color_negative
//╠════════════════════════════════════════════════════════════════════════════════════════════════════════════════════╣
//║ Plot :
plot_open = plot(ma_heikinashi_open, 'Open line', na)
plot_close = plot(ma_heikinashi_close, 'Close line', show_line_1(color_trend), 2)
plot_high = plot(ma_heikinashi_high, 'High line', show_line_2(color_neutral))
plot_low = plot(ma_heikinashi_low, 'Low line', show_line_2(color_neutral))

plot_highest = plot(math.max(ma_heikinashi_open, ma_heikinashi_close),'Highest Body line', na)
plot_lowest = plot(math.min(ma_heikinashi_open, ma_heikinashi_close),'Lowest Body line', na)


// 策略逻辑
// 策略逻辑
// 定义多空仓位变量
var float long_entry_price = na
var bool in_long_trade = false
var float short_entry_price = na
var bool in_short_trade = false

// 计算止损价格（百分比止损）
long_stop_loss_price = use_stop_loss and in_long_trade ? long_entry_price * (1 - stop_loss_percent / 100) : na
short_stop_loss_price = use_stop_loss and in_short_trade ? short_entry_price * (1 + stop_loss_percent / 100) : na

// 买入信号条件
qqe_blue_bar = (rsiColorPrimary == color.blue) and (primaryRSI - 50 > 0)
av2_line = ma_heikinashi_close
enter_long_condition = buySignal and qqe_blue_bar and (color_trend == color_positive)

// 做空信号条件
qqe_red_bar = (rsiColorPrimary == color.red) and (primaryRSI - 50 < 0)
enter_short_condition = sellSignal and qqe_red_bar and (color_trend == color_negative)

// === 做多逻辑 ===
// 进入多头
if enter_long_condition
    strategy.entry("Long", strategy.long)
    long_entry_price := close
    in_long_trade := true
    in_short_trade := false  // 关闭空头仓位（如果存在）
    short_entry_price := na

// 多头止损条件：价格下穿AV2线
long_stop_loss_av2 = in_long_trade and ta.crossunder(close, av2_line)

// 多头百分比止损条件
long_stop_loss_percent_condition = use_stop_loss and in_long_trade and close <= long_stop_loss_price

// 多头平仓条件：满足任意止损条件
if (long_stop_loss_av2 or long_stop_loss_percent_condition) and in_long_trade
    strategy.close("Long")
    in_long_trade := false
    long_entry_price := na

// === 做空逻辑 ===
// 进入空头
if enter_short_condition
    strategy.entry("Short", strategy.short)
    short_entry_price := close
    in_short_trade := true
    in_long_trade := false  // 关闭多头仓位（如果存在）
    long_entry_price := na

// 空头止损条件：价格上穿AV2线
short_stop_loss_av2 = in_short_trade and ta.crossover(close, av2_line)

// 空头百分比止损条件
short_stop_loss_percent_condition = use_stop_loss and in_short_trade and close >= short_stop_loss_price

// 空头平仓条件：满足任意止损条件
if (short_stop_loss_av2 or short_stop_loss_percent_condition) and in_short_trade
    strategy.close("Short")
    in_short_trade := false
    short_entry_price := na


回测下来比较抽象，收益不高，没有某些ytber讲的那么神奇，可能是参数没有调好吧，后续继续研究。

#量化交易
https://www.liahnu.top/2025/10/18/IBKR-量化交易入门踩坑（一）/
作者
liahnu
发布于
2025年10月18日
许可协议
